| Place of Origin: | China |
| Brand Name: | LUXU |
| Certification: | TUV |
| Model Number: | LXR018-001 |
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | US$1,50 - US$200,00 |
| Packaging Details: | white box, color box, blister, color card with blister, double blister with color card, brown box, ect. |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 10000pcs per day |
| Name: | TCT Saw Blade For Scoring Saw Blade | Carbide Material: | YG8 |
|---|---|---|---|
| Welding: | Auto-machine Weld | Tooth Pitch: | Laser Cut |
| Surface Treatment: | Oiled Or Painted | Color: | Natural |
| Material: | 65Mn | Diameter: | 80-200mm |
| Kerf: | 3.1mm - 5.4mm | Plate Thickness: | 2.2mm - 3.2mm |
| Bore: | 20mm, 22,23mm | Teeth Number: | 10T - 36T |

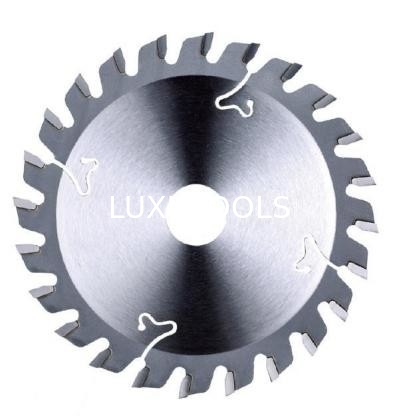

TCT Saw Blade for Scoring Saw Blade from 80mm to 200mm with low noise expansion slots
This type of Scoring TCT Circular Saw Blades with conical teeth are suitable for use on automatic sectioning machines. The conical cutting elements can change the cutting width according to change cutting depth.
Quality: for indutrial and professional market
Bore: all sizes and upon request, including 5/8”, 1”, 20mm, 22.23mm, 25mm, 30mm, 35mm, etc
Teeth number could be adjusted upon request.
Teeth type: Conical
Size and specifications:
| Diameter (mm) | Kerf | Plate thickness (mm) | Teeth Number |
| 80 | 3.1-4.2 | 2.2 | 10 |
| 100 | 3.1-4.2 | 2.2 | 20 |
| 105 | 3.1-4.2 | 2.2 | 20 |
| 105 | 3.5-4.5 | 2.2 | 20 |
| 115 | 3.1-4.2 | 2.2 | 20 |
| 115 | 3.1-4.2 | 2.2 | 24 |
| 115 | 3.5-4.5 | 2.2 | 20 |
| 115 | 3.5-4.5 | 2.2 | 24 |
| 120 | 3.1-4.2 | 2.2 | 20 |
| 120 | 3.1-4.2 | 2.2 | 24 |
| 120 | 3.5-4.5 | 2.2 | 20 |
| 120 | 3.5-4.5 | 2.2 | 24 |
| 120 | 3.8-4.8 | 2.2 | 20 |
| 125 | 3.1-4.2 | 2.2 | 24 |
| 125 | 3.1-4.2 | 2.2 | 20 |
| 125 | 3.5-4.5 | 2.2 | 20 |
| 125 | 3.5-4.5 | 2.2 | 24 |
| 125 | 3.8-4.8 | 2.2 | 20 |
| 125 | 3.8-4.8 | 2.2 | 24 |
| 150 | 4.4-5.4 | 3.2 | 24 |
| 150 | 4.4-5.4 | 3.2 | 36 |
| 160 | 3.1-4.2 | 2.2 | 24 |
| 160 | 3.1-4.2 | 2.2 | 36 |
| 160 | 3.8-4.8 | 2.5 | 24 |
| 160 | 3.8-4.8 | 2.5 | 36 |
| 160 | 4.4-5.4 | 3.2 | 24 |
| 160 | 4.4-5.4 | 3.2 | 36 |
| 180 | 4.4-5.4 | 3.2 | 28 |
| 180 | 4.5-5.7 | 3.2 | 36 |
| 200 | 4.0-5.0 | 3.2 | 32 |
| 200 | 4.0-5.0 | 3.2 | 36 |
| 200 | 4.4-5.4 | 3.2 | 32 |
| 200 | 4.4-5.4 | 3.2 | 36 |
Remark: Other special izes and specification can be tailor-made for our clients.
