| Place of Origin: | China |
| Brand Name: | LUXU |
| Certification: | TUV |
| Model Number: | LXR02706 |
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | US$1,50 - US$200,00 |
| Packaging Details: | white box, color box, blister, color card with blister, double blister with color card, brown box, ect. |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 10000pcs per day |
| Name: | Saw Blades HSS Cold And Cut-Off Saw | Teeth: | With Or Without |
|---|---|---|---|
| Teeth Type: | AW, BW, B, C, A | Color: | Natural, Black, Colorful, Silver, Golden, Copper |
| Function: | For Rmetal Tubes And Pipes Cutting | Feature: | Surface Hardening Coating |
| Surface Treatment: | Coating | Body Material: | M2, W9, Other High Speed Steel |
| Diameter: | 175mm To 550mm | Plate Thickness: | 1.2mm To 5.0mm |
| Teeth Number: | 70 To 440 |

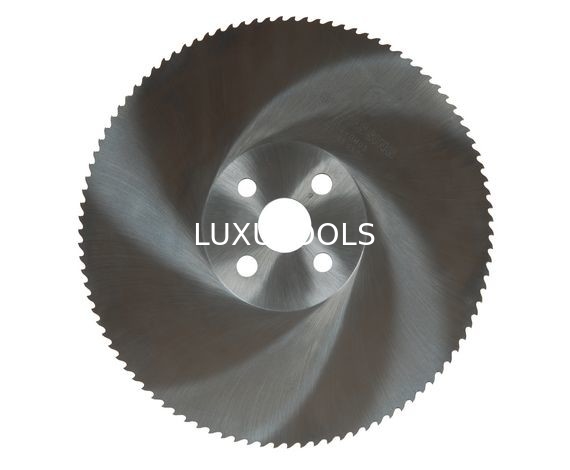

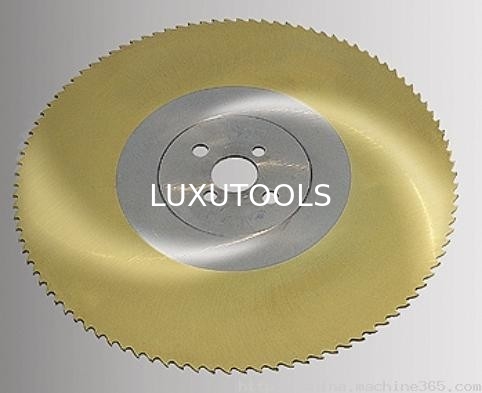

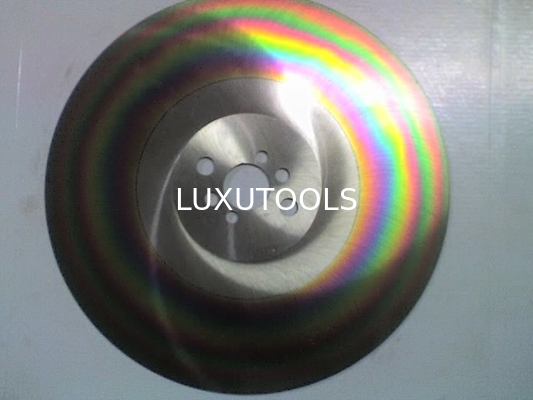

Saw Blades HSS Cold and Cut-Off Saw / for metal tubes and pipes cutting / diameter from 175mm up to 550mm
Mainly used for cut-off steels and alloys with hardness between 500N/mm2 and 800N/mm2. This high speed steel saw blades are used on manual, semi-auto, and fully auto sawing machines to cut tubes and pipes open sections, and solid sections up to 200mm.
Quality: for indutrial and professional market
Bore: all sizes and upon request, including 25.4mm, 32mm, 40mm, 50mm, 90mm, ect.
Teeth number and steel thickness could be adjusted upon request. Hook agle could be adjusted upon request.
Other sizes and specifications:
| Diameter (mm) | Bore (mm) | Plate thickness (mm) | Teeth number |
| 175 | 32 | 1.2/1.5/2.0 | 180,140,110,90,70 |
| 200 | 25.4/32 | 1.0/1.2/1.5/1.6/1.8 | 180,140,110,90,80 |
| 210 | 32 | 2.0 | 210,160,130,110,80 |
| 225 | 32/40 | 1.2/1.5/1.6/1.8/1.9/2.0/2.5 | 220,180,140,120,90 |
| 250 | 25.4/32/40 | 1.0/1.2/1.5/1.6/2.0/2.5/3.0 | 250,200,160,128,110,000 |
| 275 | 25.4/32/40 | 1.6/2.0/2.5/3.0 | 280,220,180,140,120,000 |
| 300 | 32/38/40 | 1.6/2.0/2.5/3.0 | 300,220,180,160,140,000 |
| 315 | 32/40 | 1.6/2.0/2.5/3.0/3.5 | 300,240,200,160,140,000 |
| 325 | 32/40 | 2.0/2.5/3.0 | 320/250/200/170/128 |
| 350 | 32/40/50 | 1.8/2.0/2.5/3.0/3.5 | 350/280/220/180/160/140 |
| 370 | 32/40/50 | 2.5/3.0/3.5 | 280/220/190/160/140 |
| 400 | 40/50 | 2.5/3.0/3.5/4.0 | 310/250/200/160 |
| 425 | 40/50 | 2.5/3.0/3/5/4.0 | 320/260/220/160 |
| 450 | 40/50 | 2.5/3.0/3.5/4.0 | 350/280/230/180 |
| 500 | 40/50 | 3.0/3.5/4.0/5.0 | 310/260/200 |
| 525 | 50 | 3.5/4.0 | 410/330/270/210 |
| 550 | 50/90 | 4.0/5.0 | 440/340/280/220 |
