| Place of Origin: | China |
| Brand Name: | LUXU |
| Certification: | TUV |
| Model Number: | LXR030 |
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | US$1,50 - US$200,00 |
| Packaging Details: | white box, color box, blister, color card with blister, double blister with color card, brown box, ect. |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 10000pcs per day |
| Name: | HSS Circular Saw Blade | Teeth: | With Or Without |
|---|---|---|---|
| Teeth Type: | AW, BW, B, C, A | Color: | CrN |
| Function: | For Rmetal Tubes And Pipes Cutting | Feature: | Surface CrN (Chrome Nitrie) Coating |
| Surface Treatment: | CrN Coating | Body Material: | M2, W9, Other High Speed Steel |

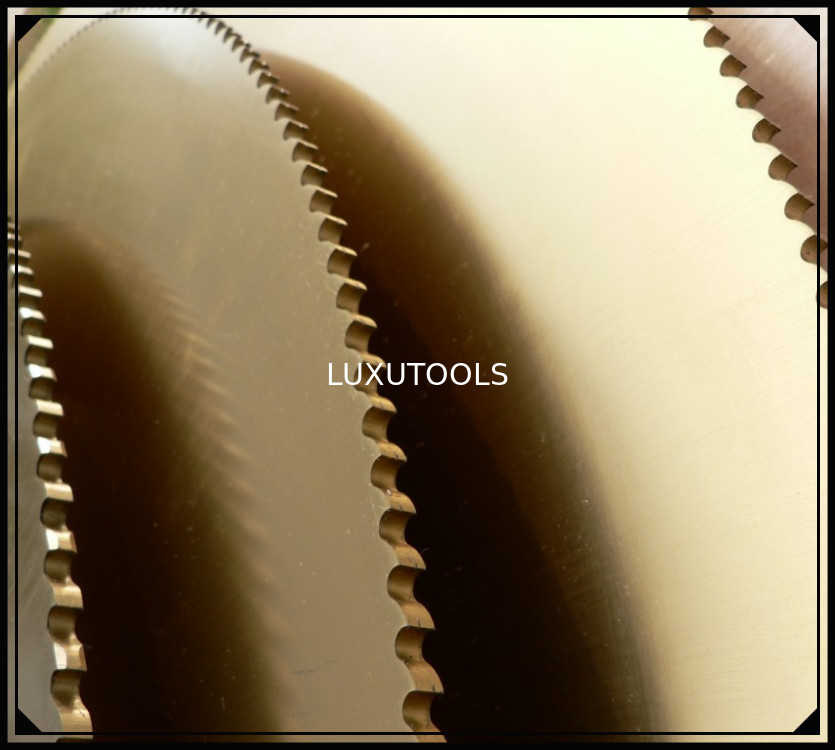

Colorful CrN Coating HSS Circular Saw Blade for metal tubes and pipes cutting from diameter 175mm up to 550mm
CrN (Chrome Niride) is a new multi-layer wear-resistance PVD coating. Recomended for high tnesile strength material above 800N/mm2 and stainless steel. Suitable for extreme working conditions including dry cutting.
Quality: for indutrial and professional market
Bore: all sizes and upon request, including 25.4mm, 32mm, 40mm, 50mm, 90mm, ect.
Teeth number and steel thickness could be adjusted upon request. Hook agle could be adjusted upon request.
Size and specifications:Remark: Other special izes and specification can be tailor-made for our clients.
| Diameter (mm) | Bore (mm) | Plate thickness (mm) | Teeth number |
| 175 | 32 | 1.2/1.5/2.0 | 180,140,110,90,70 |
| 200 | 25.4/32 | 1.0/1.2/1.5/1.6/1.8 | 180,140,110,90,80 |
| 210 | 32 | 2.0 | 210,160,130,110,80 |
| 225 | 32/40 | 1.2/1.5/1.6/1.8/1.9/2.0/2.5 | 220,180,140,120,90 |
| 250 | 25.4/32/40 | 1.0/1.2/1.5/1.6/2.0/2.5/3.0 | 250,200,160,128,110,000 |
| 275 | 25.4/32/40 | 1.6/2.0/2.5/3.0 | 280,220,180,140,120,000 |
| 300 | 32/38/40 | 1.6/2.0/2.5/3.0 | 300,220,180,160,140,000 |
| 315 | 32/40 | 1.6/2.0/2.5/3.0/3.5 | 300,240,200,160,140,000 |
| 325 | 32/40 | 2.0/2.5/3.0 | 320/250/200/170/128 |
| 350 | 32/40/50 | 1.8/2.0/2.5/3.0/3.5 | 350/280/220/180/160/140 |
| 370 | 32/40/50 | 2.5/3.0/3.5 | 280/220/190/160/140 |
| 400 | 40/50 | 2.5/3.0/3.5/4.0 | 310/250/200/160 |
| 425 | 40/50 | 2.5/3.0/3/5/4.0 | 320/260/220/160 |
| 450 | 40/50 | 2.5/3.0/3.5/4.0 | 350/280/230/180 |
| 500 | 40/50 | 3.0/3.5/4.0/5.0 | 310/260/200 |
| 525 | 50 | 3.5/4.0 | 410/330/270/210 |
| 550 | 50/90 | 4.0/5.0 | 440/340/280/220 |
