| Place of Origin: | China |
| Brand Name: | LUXU |
| Certification: | TUV |
| Model Number: | LXR054-1050-001 |
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | US$1,50 - US$200,00 |
| Packaging Details: | white box, color box, blister, color card with blister, double blister with color card, brown box, ect. |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 10000pcs per day |
| Name: | Cold Saw Blade | Tooth Pitch: | Laser Cut Or Punched |
|---|---|---|---|
| Teeth: | Sharpened | Color: | Natural |
| Function: | Fo Rmetal Cutting | Feature: | Without Carbide Tip |
| Surface Treatment: | Oiled Or Painted | Body Material: | 65Mn |
| Size: | 1050mm | Teeth Number: | 288 |
| Plate Thickness: | 5.5mm | Bore: | 110mm |

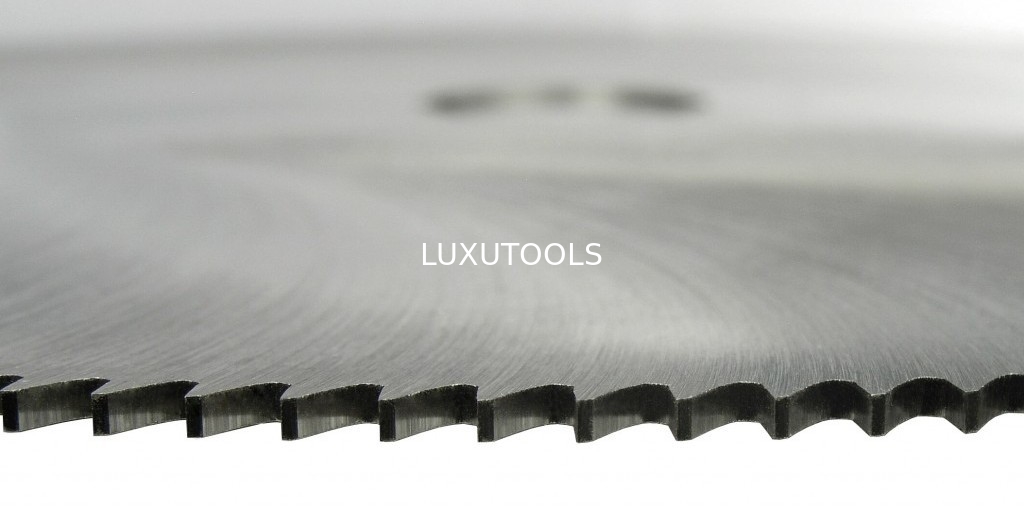

Cold Saw Blade Store | LUXU TOOLS | 1050mm x 110mm x 5.5mm Z=288 | for cutting thin wall steel pipes
Mainly used for cutting all kinds of metal thin wall pipe under the normal temperature.
Quality: for indutrial and professional market
Diameter: 1050mm
Bore: 110mm
Plate thickness: 5.5mm
Teeth number: 288
Teeth number and steel thickness could be adjusted upon request. Hook agle could be adjusted upon request.
Other sizes and specifications:
| Diameter (mm) | Width(B) | Bore Diameter(D) | Teeth No.(Z) |
| 350 | 2.2,2.5,3.0 | 32 | 160,180,200,220 |
| 400 | 3.0,3.5 | 40 | 140,160,180,200,216 |
| 430 | 4.0 | 80 | 210 |
| 500 | 3.5,4.0 | 65 | 160,180,200,210 |
| 550 | 3.5,4.0 | 70 | 136,160,180,216 |
| 600 | 3.5,4.0 | 80,90,100 | 180,200,216,268 |
| 650 | 3.5,4.0 | 80,90,100 | 180,200,216,268 |
| 700 | 4.5,5.0 | 60,90,100 | 216,240,300 |
| 750 | 5.0,5.5 | 65,70,90 | 180,248,295,300 |
| 800 | 5.0,6.0 | 65,85,90,100 | 250,260,366 |
| 900 | 5.0,6.0 | 110,120 | 208,238,288,340 |
| 1000 | 5.5,6.0 | 120,130 | 288,48,432 |
| 1050 | 5.5 | 110,120 | 288 |
| 1200 | 6.0,8.0 | 120 | 348 |
