| Place of Origin: | China |
| Brand Name: | LUXU |
| Certification: | TUV |
| Model Number: | LXR04801 |
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | US$1,50 - US$200,00 |
| Packaging Details: | white box, color box, blister, color card with blister, double blister with color card, brown box, ect. |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 10000pcs per day |
| Name: | Blades For Circular Saws | Tooth Pitch: | Laser Cut Or Punched |
|---|---|---|---|
| Teeth: | Sharpened | Color: | Natural |
| Function: | For Wood Cutting | Feature: | Body With Low Noise Laser Cut |
| Surface Treatment: | Oiled Or Painted | Body Material: | 65Mn |
| Size: | 100mm Up To 1200mm | Teeth Number: | 40 Up To 160 |
| Plate Thickness: | 1mm Up To 6.5mm |

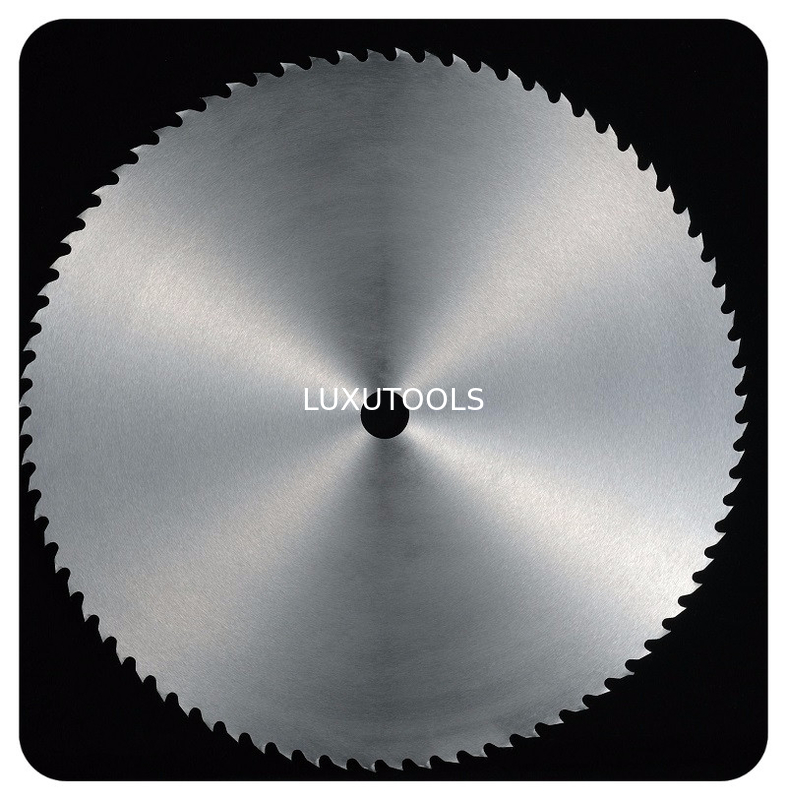

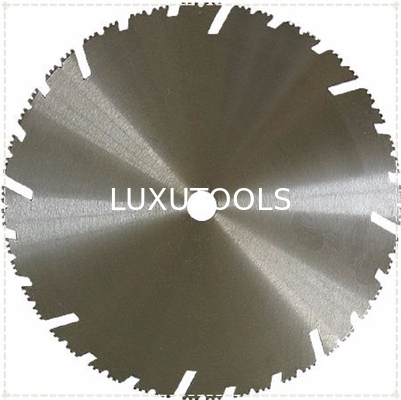

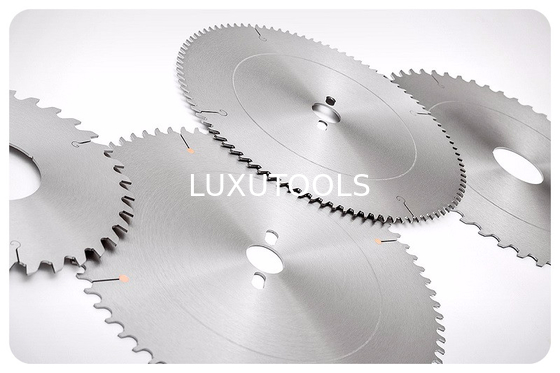

Blades for Circular Saws - without Carbide Tips - LUXU TOOLS - ø 100 - 1200 mm - for wood
For general, simple, precise cuts in softwood, hardwood, plywood, panels, chipboard, multi-board ect...
Quality: for indutrial and professional market
Bore: all sizes and upon request, including 5/8", 1", 20mm, 22.23mm, 25mm, 30mm, 35mm.
Diameter: 1200mm
Plate thickness: 5mm, 5.5mm, 6.0m, 6.5mm
Teeth number: Z=80, 100, 120, 140, 160
Other sizes and specification are as the following:
| Diameter (mm) | Plate Thickness (mm) | Teeth Number |
| 100 | 1.0 | 40, 56 |
| 115 | 1.0 | 40, 56 |
| 125 | 1.0 | 56, 64, 80 |
| 130 | 1.0 | 56, 64, 80 |
| 140 | 1.0 | 56, 64, 80 |
| 150 | 1.0 | 56, 64, 80,90 |
| 156 | 1.0 | 56, 64, 80,90 |
| 160 | 1.0 | 56, 90, 100, 110 |
| 170 | 1.0 | 72, 90, 100, 110 |
| 180 | 1.2 | 72, 90, 100, 110 |
| 184 | 1.2 | 72, 90, 100, 110 |
| 190 | 1.2 | 72, 90, 100, 110 |
| 200 | 1.2 | 56, 72, 80, 100 |
| 200 | 1.4 | 56, 72, 80, 100 |
| 200 | 1.6 | 56, 72, 80, 100 |
| 230 | 1.4 | 36, 56, 72, 80 |
| 230 | 1.6 | 36, 56, 72, 80 |
| 230 | 1.8 | 36, 56, 72, 80 |
| 250 | 1.2 | 36, 56, 80, 100, 120 |
| 250 | 1.4 | 36, 56, 80, 100, 120 |
| 250 | 1.6 | 36, 56, 80, 100, 120 |
| 250 | 1.8 | 36, 56, 80, 100, 120 |
| 300 | 1.6 | 36, 56, 80, 100, 120 |
| 300 | 1.8 | 36, 56, 80, 100, 120 |
| 300 | 2.0 | 36, 56, 80, 100, 120 |
| 315 | 1.6 | 36, 56, 80, 100, 120 |
| 315 | 1.8 | 36, 56, 80, 100, 120 |
| 315 | 2.0 | 36, 56, 80, 100, 120 |
| 350 | 1.8 | 56, 80, 100, 120, 140 |
| 350 | 2.0 | 56, 80, 100, 120, 140 |
| 350 | 2.2 | 56, 80, 100, 120, 140 |
| 400 | 2.0 | 56, 80, 100, 120, 140 |
| 400 | 2.2 | 56, 80, 100, 120, 140 |
| 400 | 2.5 | 56, 80, 100, 120, 140 |
| 450 | 2.2 | 56, 80, 100, 120, 140 |
| 450 | 2.5 | 56, 80, 100, 120, 140 |
| 450 | 2.8 | 56, 80, 100, 120, 140 |
| 500 | 2.2 | 56, 80, 100, 120, 140 |
| 500 | 2.5 | 56, 80, 100, 120, 140 |
| 500 | 2.8 | 56, 80, 100, 120, 140 |
| 500 | 3.0 | 56, 80, 100, 120, 140 |
| 550 | 2.5 | 56, 80, 100, 120, 140 |
| 550 | 2.8 | 56, 80, 100, 120, 140 |
| 550 | 3.0 | 56, 80, 100, 120, 140 |
| 600 | 2.5 | 56, 80, 100, 120, 140 |
| 600 | 2.8 | 56, 80, 100, 120, 140 |
| 600 | 3.0 | 56, 80, 100, 120, 140 |
| 600 | 3.2 | 56, 80, 100, 120, 140 |
| 700 | 2.8 | 56, 80, 100, 120, 140 |
| 700 | 3.0 | 56, 80, 100, 120, 140 |
| 700 | 3.2 | 56, 80, 100, 120, 140 |
| 750 | 3.0 | 56, 80, 100, 120, 140 |
| 750 | 3.2 | 56, 80, 100, 120, 140 |
| 750 | 3.5 | 56, 80, 100, 120, 140 |
| 800 | 3.2 | 56, 80, 100, 120, 140 |
| 800 | 3.5 | 56, 80, 100, 120, 140 |
| 800 | 3.8 | 56, 80, 100, 120, 140 |
| 800 | 4.0 | 56, 80, 100, 120, 140 |
| 900 | 3.5 | 56, 80, 100, 120, 140 |
| 900 | 4.0 | 56, 80, 100, 120, 140 |
| 900 | 4.5 | 56, 80, 100, 120, 140 |
| 1000 | 4.0 | 56, 80, 100, 120, 140 |
| 1000 | 4.5 | 56, 80, 100, 120, 140 |
| 1000 | 5.0 | 56, 80, 100, 120, 140 |
| 1100 | 4.5 | 80, 100, 120, 140, 160 |
| 1100 | 5.0 | 80, 100, 120, 140, 160 |
| 1100 | 5.5 | 80, 100, 120, 140, 160 |
| 1200 | 5.0 | 80, 100, 120, 140, 160 |
| 1200 | 5.5 | 80, 100, 120, 140, 160 |
| 1200 | 6.0 | 80, 100, 120, 140, 160 |
| 1200 | 6.5 | 80, 100, 120, 140, 160 |
